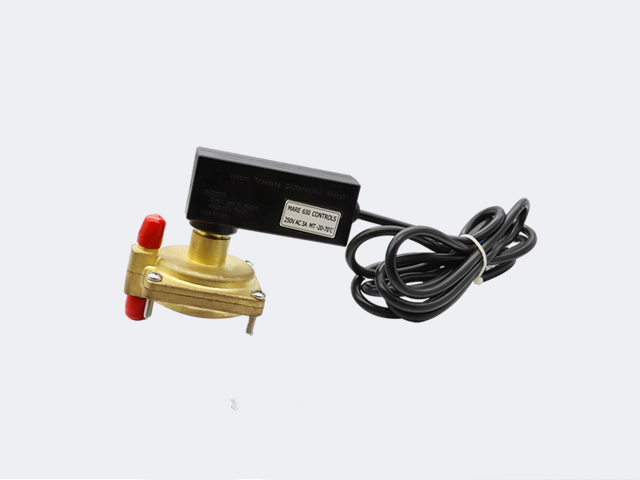

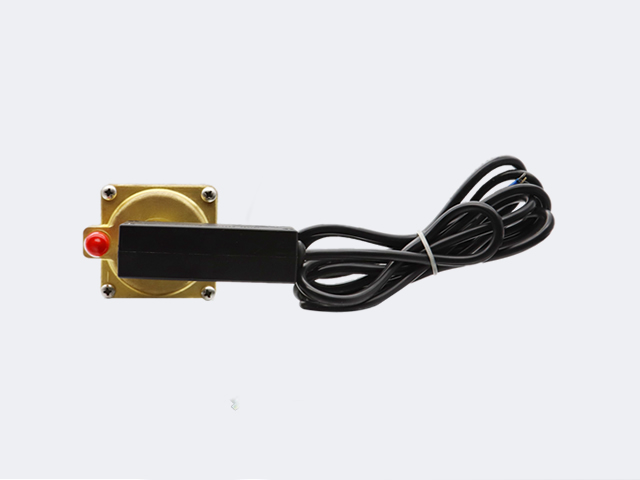

Differential Pressure Type Flow Switch
|
Protection grade |
IP54 |
|
Maximum permissible static pressure |
10bar |
|
Storage temperature |
-29~82℃ |
|
Maximum permissible differential pressure |
5bar |
|
Ambient service temperature |
-20~71℃ |
|
Repeatability deviation of set point |
±1% |
|
Medium service temperature |
-20~93℃ |
|
Cable details |
105℃ Flame-retardant sheathed wire 2×0.75mm2,3×0.75mm2 |
|
Output form |
10A；125/250VAC； |
|
working medium |
Water and air (Please declare in order, if it’s another medium.) |
|
Side connector of high-low pressure |
1/4〞 SAE（7/16〞-20UNF）,1/4〞NPT etc.can be chosen. |
