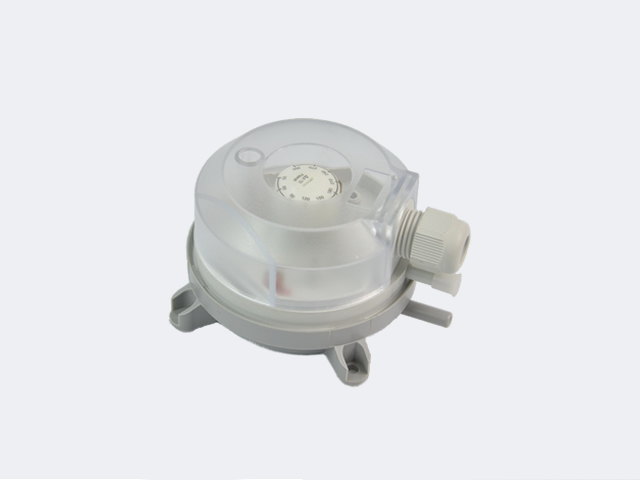

TEB930 Differential Pressure Switch
TEB930 Differential Pressure Switch
TEB930 Differential Pressure Switch

TEB930 switch is capable to sense tiny pressure change and widely used to control the flue of aerator, to monitor and fan and air conditioner; It is also suit for over heating protection and frost protection in industrial cooling system. Due to its outstanding design, the setpoint can been adjust visually.

Series TEB930 Differential Pressure Switch

INTRODUCTION

TEB930 switch is capable to sense tiny pressure change and widely used to control the flue of aerator, to monitor and fan and air conditioner; It is also suit for over heating protection and frost protection in industrial cooling system. Due to its outstanding design, the setpoint can been adjust visually.

SPECIFICATION

Model

TEB930

Media

Air, non-combustible and non-aggressive gases.

Max Operating

10kPa

Mounting

Diaphragm in any vertical plane

Degree of Protection

IP54(With Cover), IP00(without Cover)

Operating Temperature

-40 to + 85

Range

930.80 20-200Pa

930.81 30-300Pa

930.82 50-500Pa

930.83 200-1000Pa

930.85 500-2500Pa

930.86 1000-4000Pa

Contact Arrangement

SPDT

Electrical Rating

Resistance: initaial:50 milliohms

Current: 1.5A(0.4A)/250V

Terminal

6.3mm×0.8blade or screw terminal

Connection

Φ6.0 mm for tube connection

Conversion: 1in/ H?O=249Pa 1mbar=100Pa

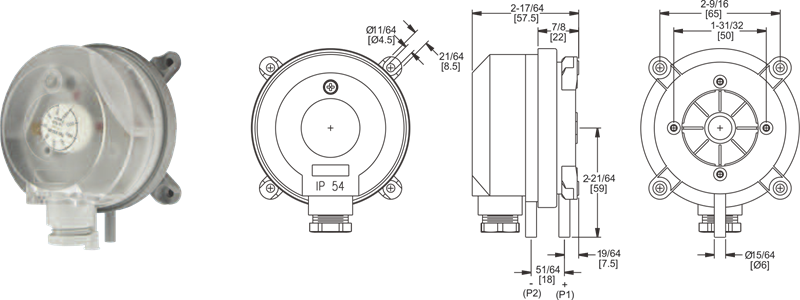

DIMENSIONAL DRAWING
