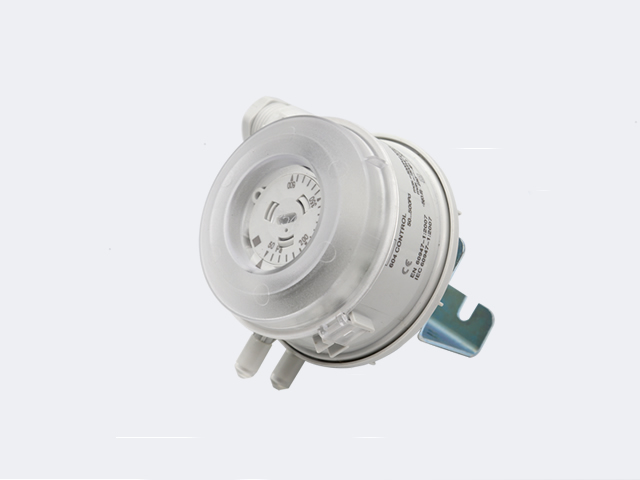

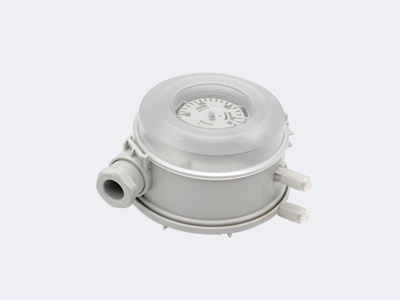

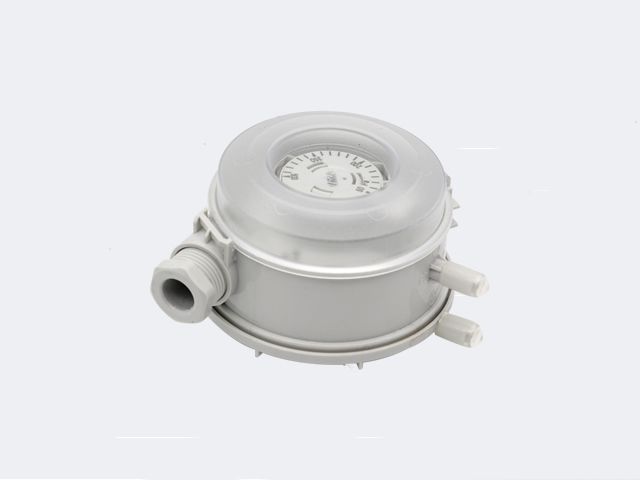

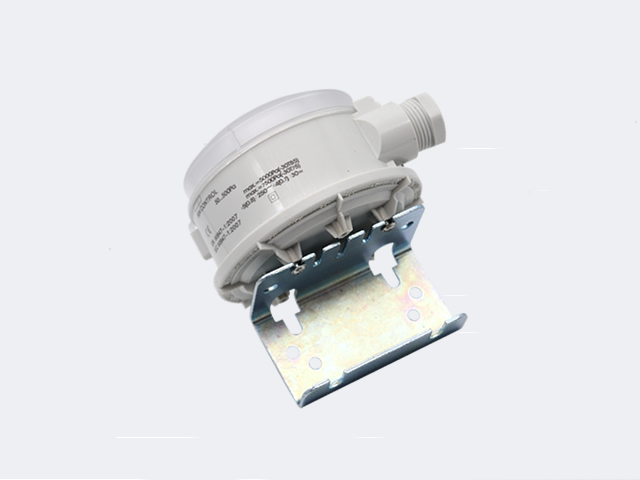

TEB604 Differential Pressure Switch
TEB604 Differential Pressure Switch
TEB604 Differential Pressure Switch

TEB604 switch is capable to sense tiny pressure change and widely used to control the flue of aerator, to monitor and fan and air conditioner; It is also suit for over heating protection and frost protection in industrial cooling system. Due to its outstanding design, the setpoint can been adjust visually.

Series TEB604 Differential Pressure Switch

INTRODUCTION

TEB604 switch is capable to sense tiny pressure change and widely used to control the flue of aerator, to monitor and fan and air conditioner; It is also suit for over heating protection and frost protection in industrial cooling system. Due to its outstanding design, the setpoint can been adjust visually.

SPECIFICATION

Model

TEB604

Range

30~1000Pa

Media

Air, non-combustible and non-aggressive gases.

Max Operating

10kPa

Mounting

Diaphragm in any vertical plane

Degree of Protection

IP54(With Cover), IP00(without Cover)

Operating Temperature

-40 to + 85

Optional Range

Model: 604-0

Differential pressure range: 20-200 Pa

Model: 604-1

Differential pressure range: 20-300 Pa

Model: 604-2

Differential pressure range: 30-300 Pa

Model: 604-3

Differential pressure range: 50-500 Pa

Model: 604-5

Differential pressure range: 100-1000 Pa

Contact Arrangement

SPDT

Electrical Rating

Resistance: initaial:50 milliohms

Current: 1.5A(0.4A)/250V

Terminal

6.3mm×0.8blade or screw terminal

Connection

Φ6.0 mm for tube connection

Conversion: 1in/ H?O =249Pa 1mbar=100Pa
