Used In Hydraulic and Pneumatic Systems, Compressors, Regulator and industry machine, and suitable for fluid medium or Gaseous which does not clog connection port or corrode Stainless steel. It can used for severe service conditions where pulsation or vibration exist. Premium quality and long life.

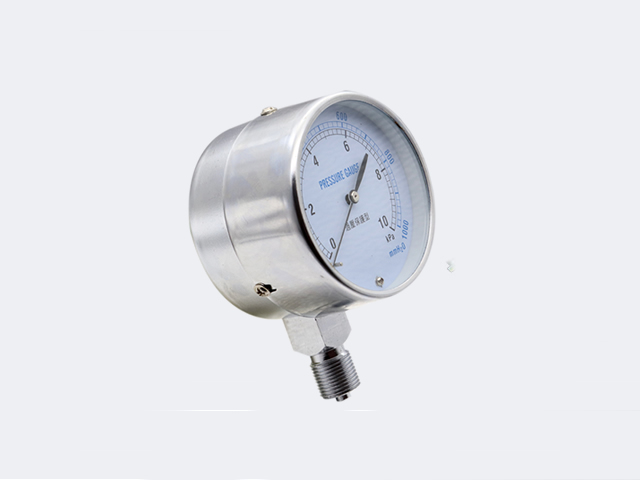

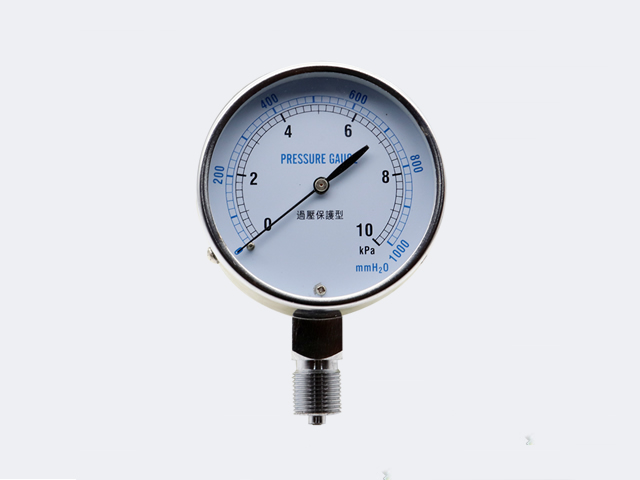

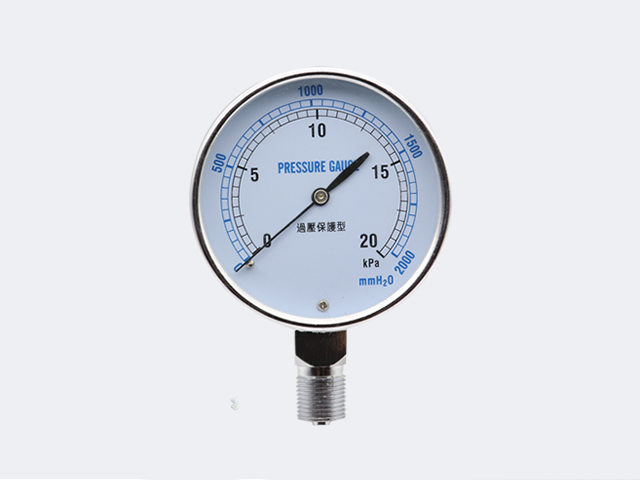

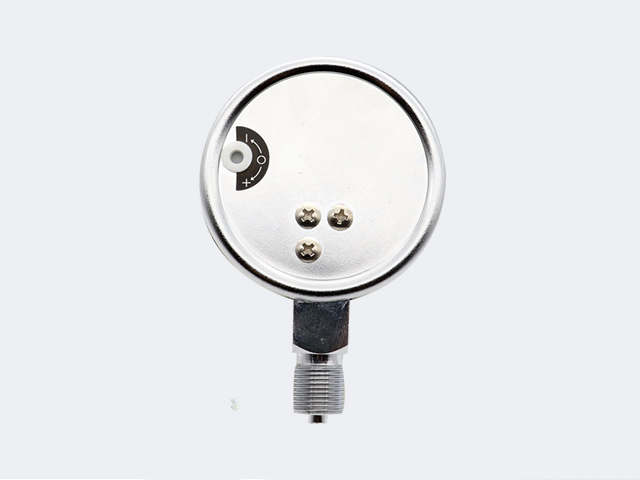

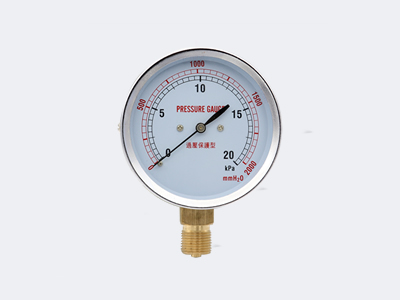

YE-75 Overpressure Protection Type Capsule Pressure Gauge
Application
Used In Hydraulic and Pneumatic Systems, Compressors, Regulator and industry machine, and suitable for fluid medium or Gaseous which does not clog connection port or corrode Stainless steel. It can used for severe service conditions where pulsation or vibration exist. Premium quality and long life.
Specifications
|
Outer diameter |
75MM |
|
Testing pressure range |
-100Kpa~0 to 0~100Kpa |
|
Accuracy |
Level 1.5；Level 2.5 |
|
Sensitive element |
copper (Cu) |
|
Case material |
chrome plated carbon steel |
|
Operating environment |
-25~55℃, relative humidity≤85% |
|
Temperature effect |
≤0.4%/10℃ |
