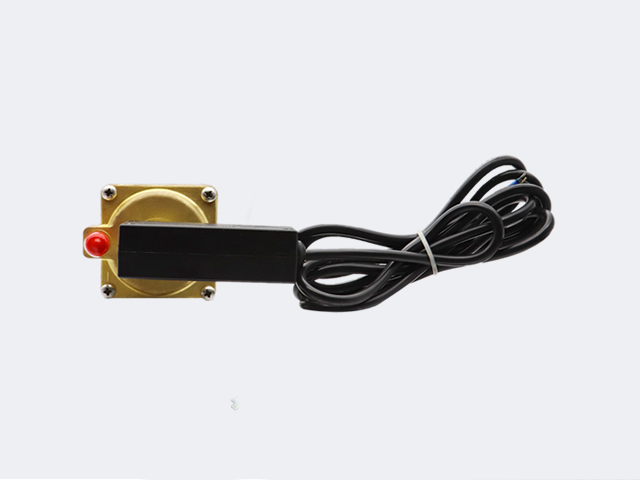

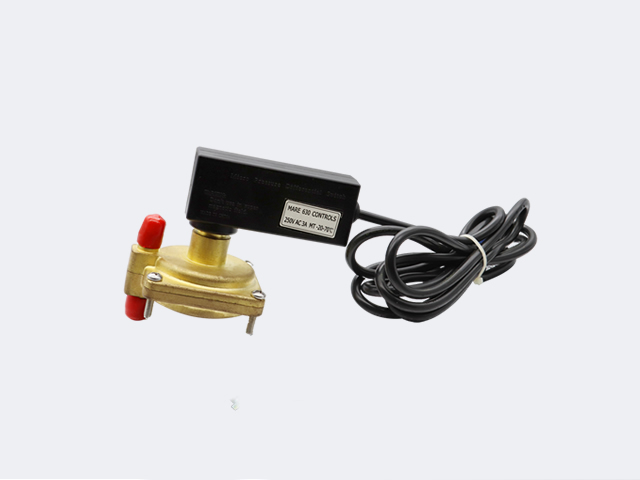

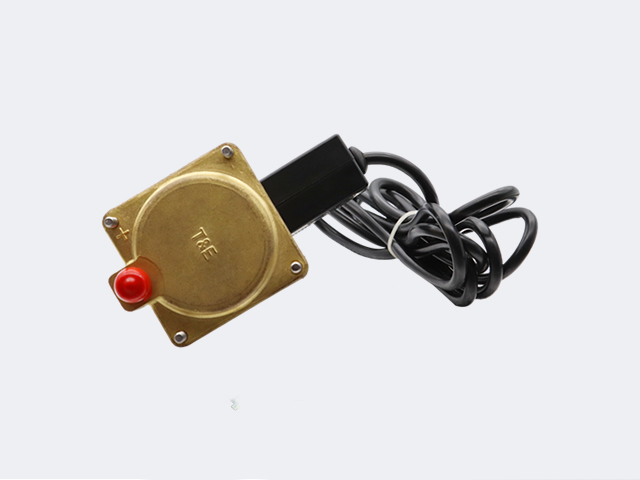

Differential Pressure Type Flow Switch
SPECIFICATION
Protection grade
IP54
Maximum permissible static pressure
10bar
Storage temperature
-29~82℃
Maximum permissible differential pressure
5bar
Ambient service temperature
-20~71℃
Repeatability deviation of set point
±1%
Medium service temperature
-20~93℃
Cable details
105℃ Flame-retardant sheathed
wire 2×0.75mm2,3×0.75mm2
Output form
10A；125/250VAC；
working medium
Water and air
(Please declare in order, if it’s another medium.)
Side connector of high-low pressure
1/4〞 SAE（7/16〞-20UNF）,1/4〞NPT etc.can be chosen.
