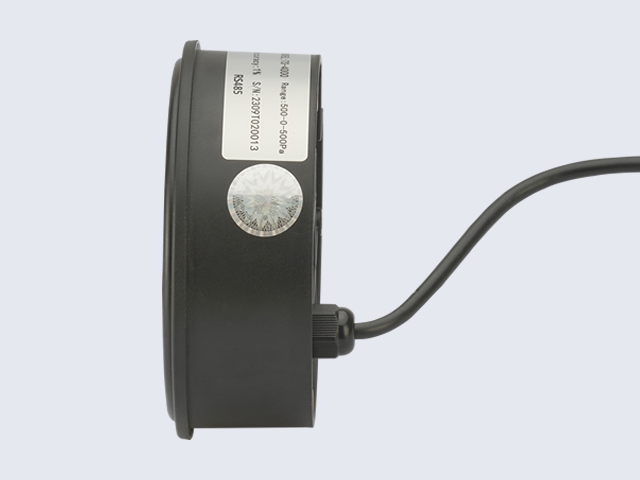

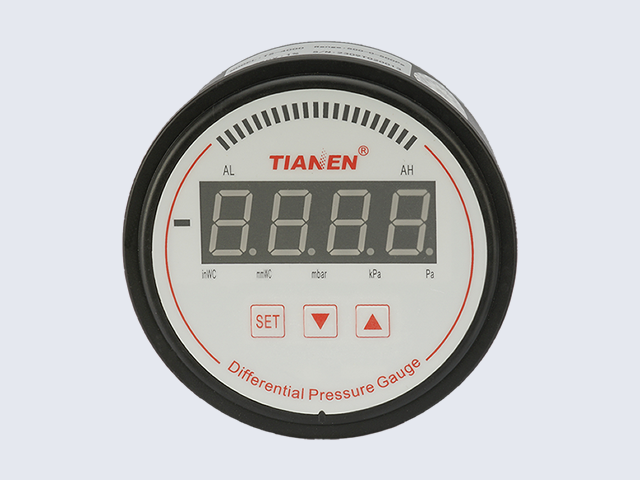

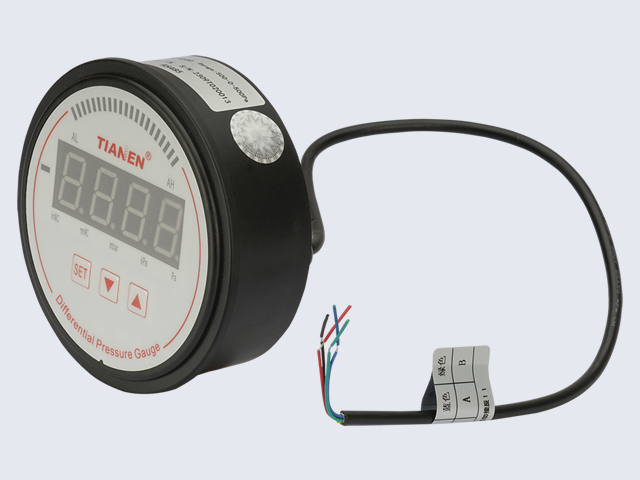

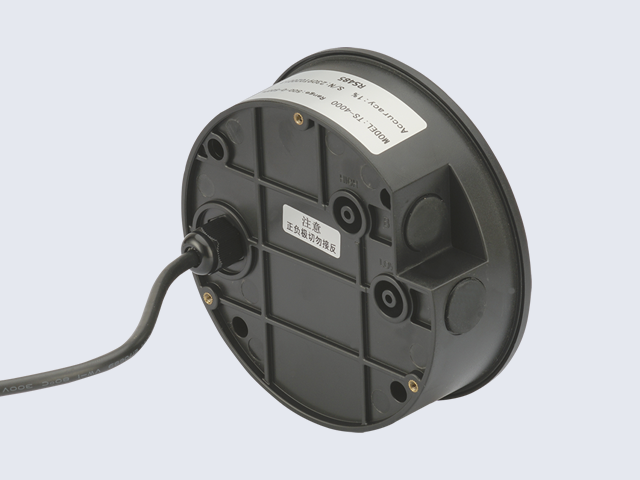

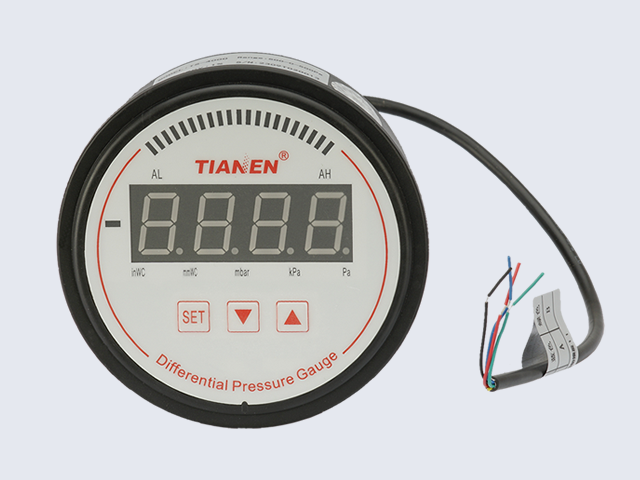

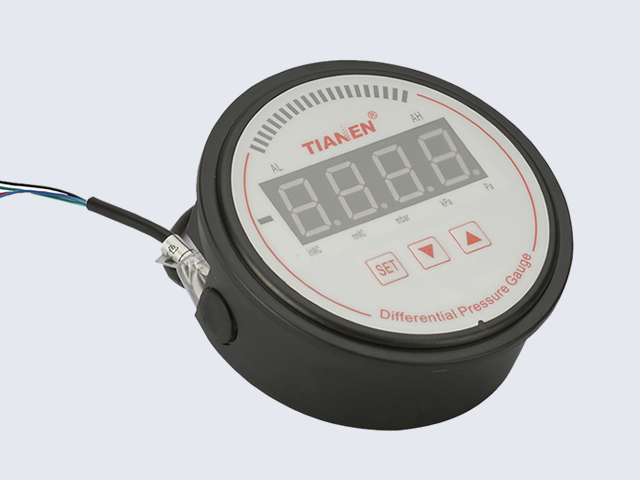

TS4000 Differential Pressure Alarm Transmitter
TS4000 Differential Pressure Alarm Transmitter
TS4000 Differential Pressure Alarm Transmitter

Product Description
Specification
item
DIFFERENTIAL PRESSURE ALARM TRANSMITTER
Place of Origin
China
Zhejiang
Brand Name
TIANEN
Model Number
TS-4000
Medium
air and non-flammable, non-corrosive gas
Medium temperature
0-60 ° C
Working environment
-20 ° C ~ + 85 ° C
Differential pressure range
multiple ranges, overload 3xFS, breaking pressure 10xFS
Communication output
RS485
Long-term stability
± 0.1% FS / Year
Temperature drift coefficient
<0.03% FS / ° C
Power supply
9-36 VDC (24VDC is recommended)
Case material
ABS engineering plastic
Power consumption
2W
Vibration
<20Hz: 9.8m / s2 (1G) max; 20Hz ~ 50Hz: 5.88m / s2 (0.6G) max
Accuracy
± 1% FS
Connection
1/8"
Title goes here.
THE MAIN FUNCTIONS:
Detection range:
1. -500Pa——500Pa;
2. -250Pa——250Pa;
3. -125Pa——125Pa;
4. -60Pa——60Pa;
5..… (Add ranges according to your actual need)
Output method:
Current output: 4-20mA;
Bus: RS485 (Modbus).
Switching alarm output: 2 normally open + 2 normally closed;
Buzzer warning
