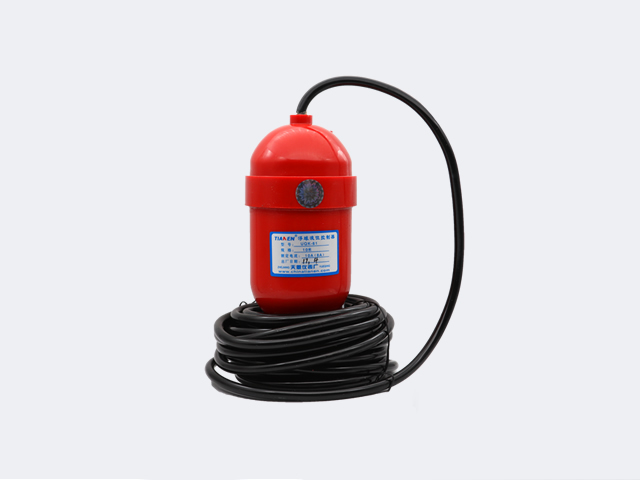

UQK-61 Magnetic Float Control Switch
UQK-61 Magnetic Float Control Switch
UQK-61 Magnetic Float Control Switch

UQK-61 Magnetic Float Control Switch

UQK-61 Magnetic float control switch is using reed and inches switch of floating-ball to send out contact signal. Because of no movable mechanism on the outside, it’s especially suitable for the liquid with solid and semisolid floater and mucigen liquid such as sewer water, factory sewage.


Technical data

Model

Switch data

Main attachment

Application

UQK-611

One point

Wire: Φ8, 5meters

Span wire: Φ5, 6meters

Heavy punch, Clamp holder

Sewage with tiny floater

UQK-612

Two point

Wire: Φ8, 5meters(Each point )

Span wire: Φ5, 6meters

Junction box, Heavy punch, Clamp holder

Industrial sewage and sanitary waste with a lot of floater

UQK-613

Three point

UQK-614

Four point

Outline Dimension

Floating – ball: Φ8×172

Junction box: The max external diameter is Φ205, the height is 142.

Size of mounting hole: Φ170, 4-Φ18

Output Singal

Contact output of REED.( REED imports from abroad )

Contact output of inches switch.

Contact Form

(NO) or (NC)

Contact Rating

working voltage: 220VAC

working current: 1A

Contact output of inches switch: 5A

Contact Endurance

2×106

Medium temperature

-10~+80ABS -10~+150(Stainless steel)

Adjustable range

0.3m~10m
